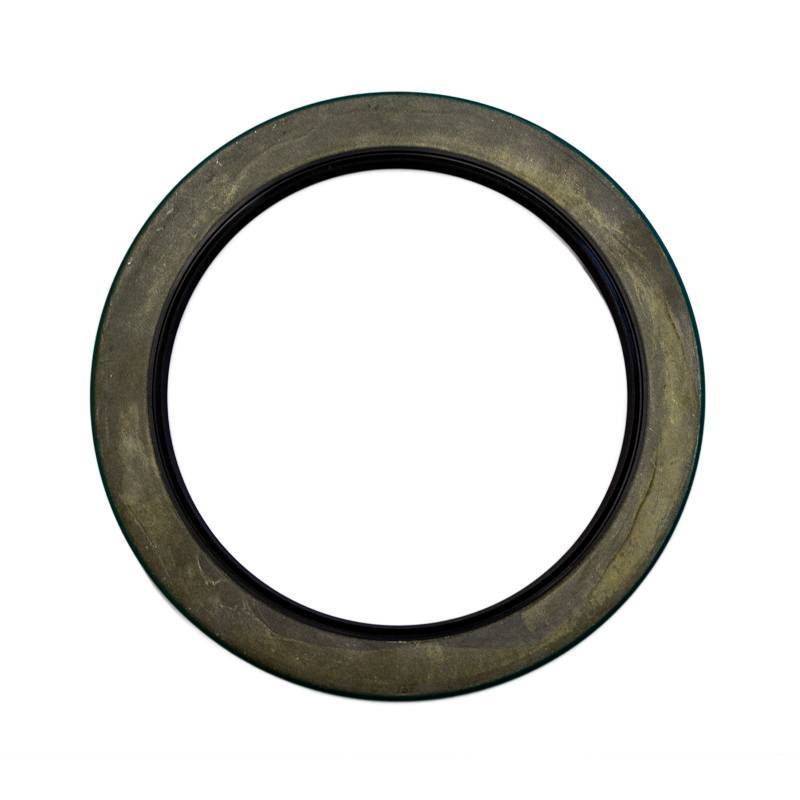

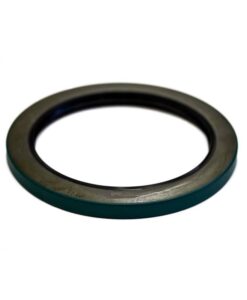

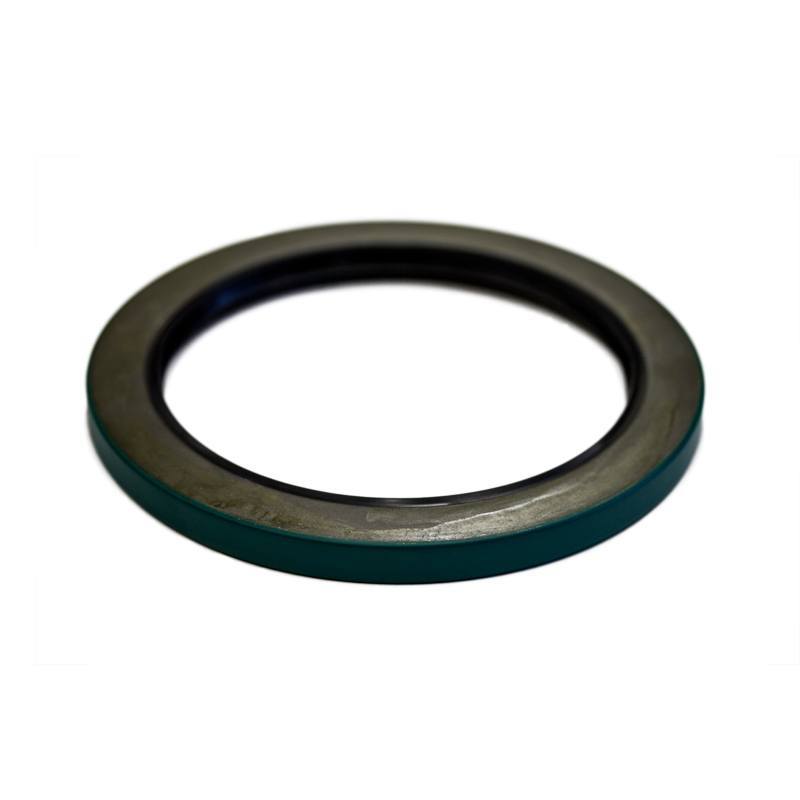

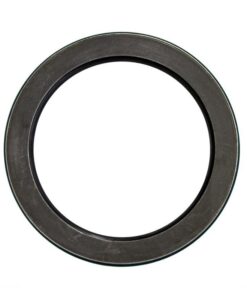

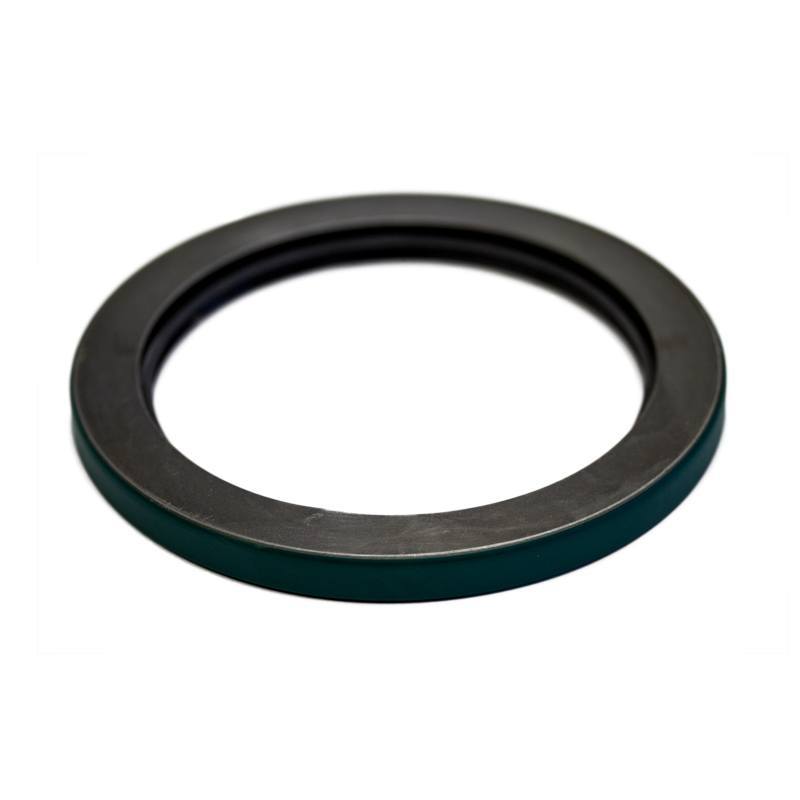

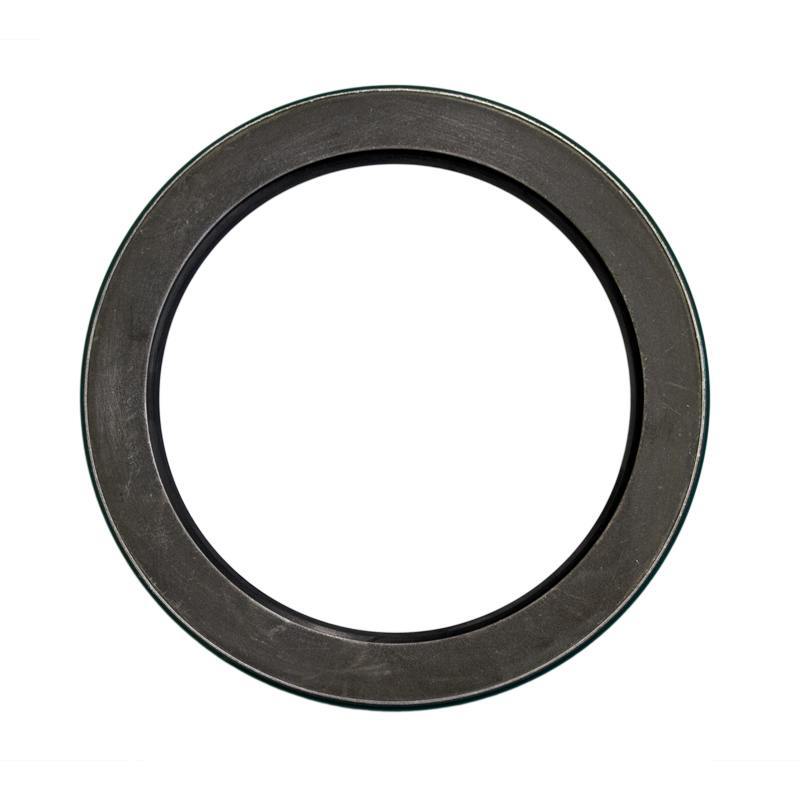

The Enduro SE-575-750-56TA is a double lip oil seal with a TA lip design containing a stainless steel spring. The Enduro SE-575-750-56TA is made of nitrile with medium percentage of acrylonitrile (NBR 70) which provides good compression set values for contact with hydraulic fluids.
Oil seals are designed to keep lubrication fluids in while preventing debris and water from entering the rotating shaft.
| Dimension | IN | MM | Style | Construction | Material | Spring Material | |
| OD (D) | 7.5000 | 190.5004 | TA | Double Lip | NBR 70 | Stainless Steel | |
| ID (d) | 5.7500 | 146.0503 | |||||
| W (B) | 0.5600 | 14.2240 |
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 7.5 × 7.5 × 0.5 in |
| Access Restriction | ""link"":""none""} |
| A | ""link"":""post""} |
| Actuator Type | bgcolor"":""""}" |
| Category | Oil Seals |
| Construction | Double Lip |
| Style | TA |
| Part Number | T9043564, SE-575-750-56TA |
| Material | NBR 70 |
| Outside Diameter (D) | 7.50 in, 190.5004 mm |
| Inside Diameter (d) | 5.75 in, 146.0503 mm |
| Width (B) | 0.56 in, 14.2240 mm |
| Spring Material | Stainless Steel |
| Min Temperature | -40° F, -40° C |
| Max Temperature | 225° F, 107° C |
