Product Information
Enduro MI-28
MI-28 / MR-36 RSS

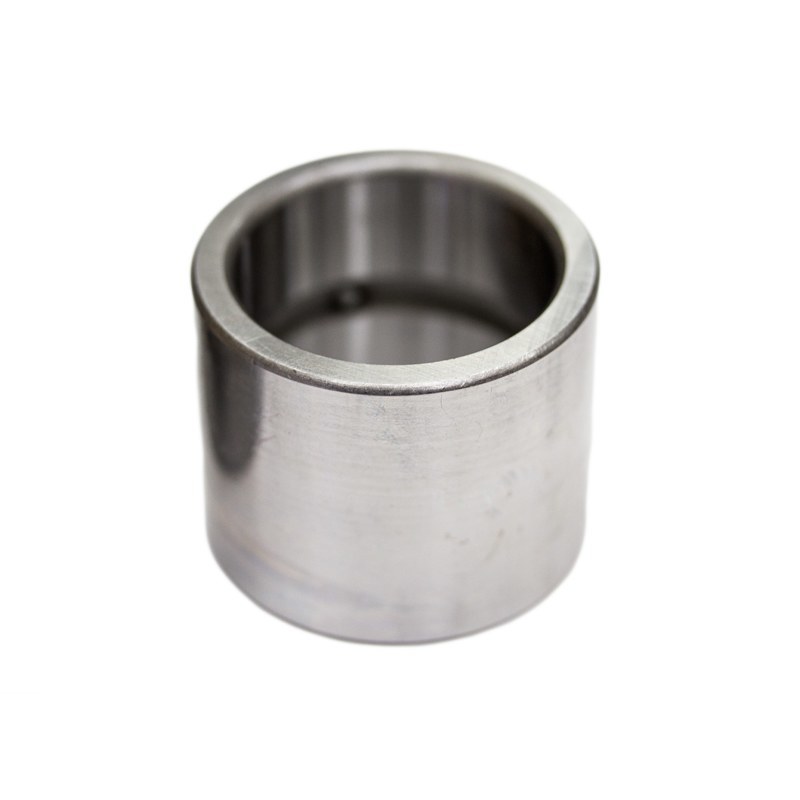

The Enduro MI-28 is a precision ground inner race ring that provides a hardened and ground steel raceway for needle roller bearing Enduro MR-36 RSS (sold separately). The design features an oil hole and annular groove for easy relubrication while the bearing is in place. In plain bearing applications, the Enduro MI-28 can be utilized as a bushing.
Needle bearings have a large surface area that is in contact with the bearing outer surfaces compared to ball bearings. Additionally there is less added clearance so they are much more compact. The typical structure consists of a needle cage which orients and contains the needle rollers, the needle rollers themselves, and an outer race.
DIMENSIONS | INCH | MM | LOAD RATING | LBF | N | |
Shaft Ø | 1.7500 | 44.45 | Cor | 8790 | 39100 | |
D | 2.2489 | 57.1221 | Cr | 5036 | 22400 | |
B | 1.5100 | 38.354 |

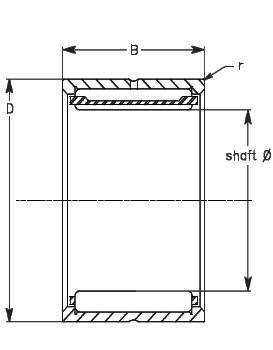

Click here to see the Reference Diagram.
DIMENSION | DESCRIPTION | LOAD RATING | DESCRIPTION | |
Shaft Ø | Inside Diameter | Cor | Static Load Rating | |
D | Outside Diameter | Cr | Dynamic Load Rating | |
B | Width | |||
r | Radius |
