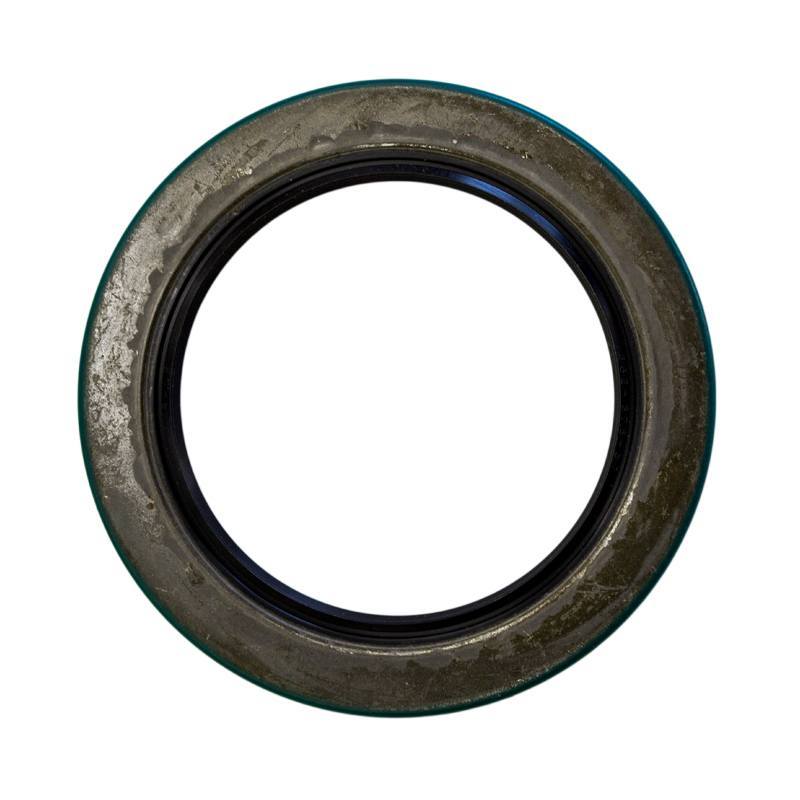

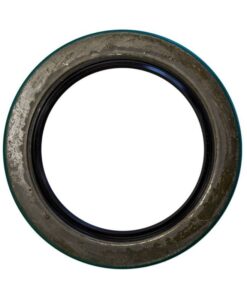

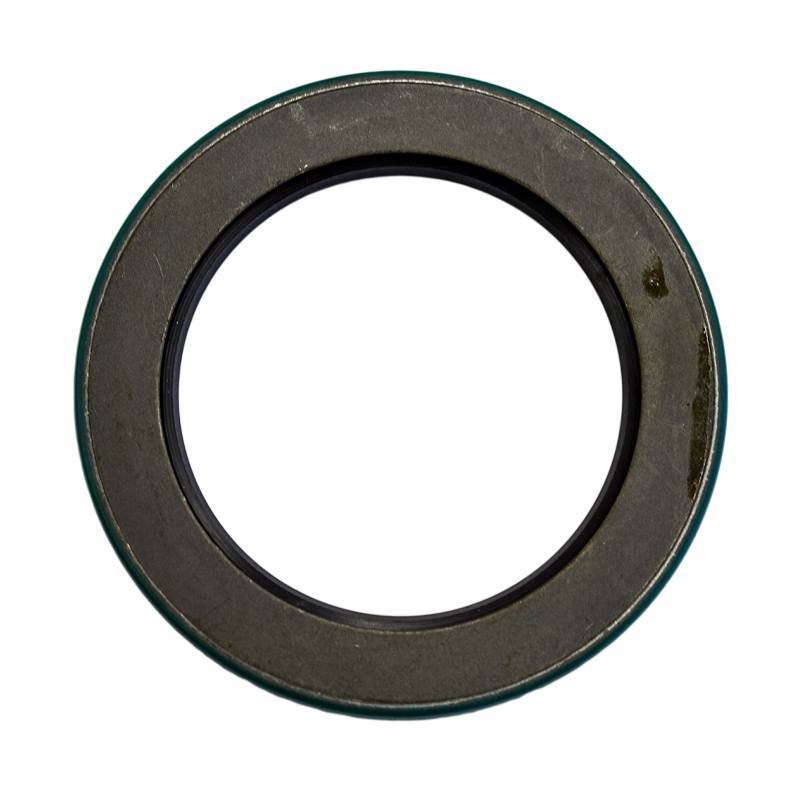

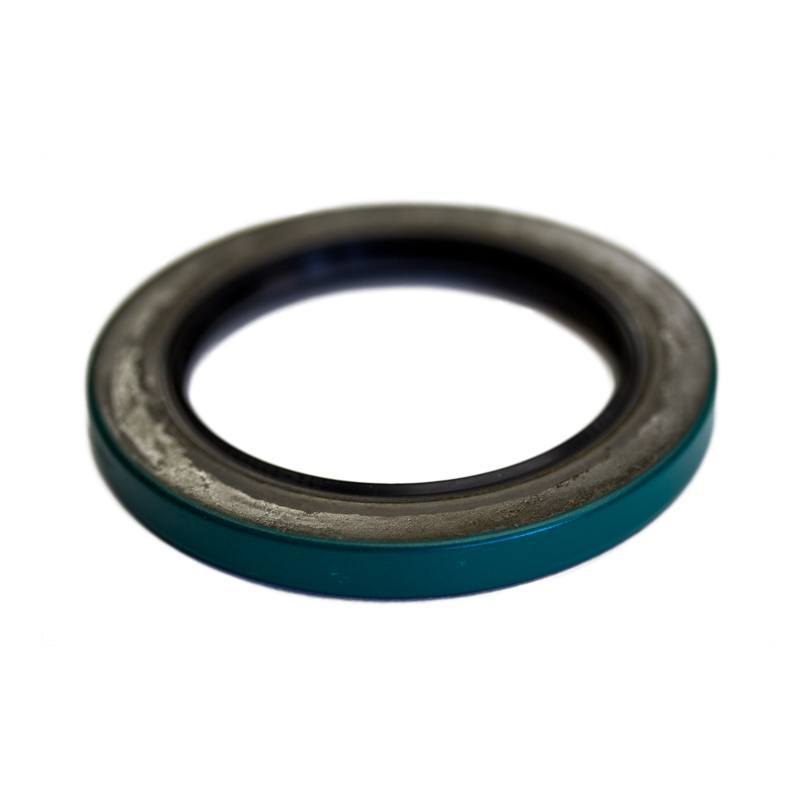

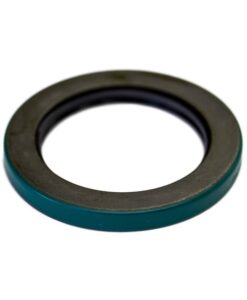

The Enduro SE262-375-37TA is a double lip oil seal with a TA lip design containing a stainless steel spring. The Enduro SE262-375-37TA is made of nitrile with medium percentage of acrylonitrile (NBR 70) which provides good compression set values for contact with hydraulic fluids.
Oil seals are designed to keep lubrication fluids in while preventing debris and water from entering the rotating shaft.
| Dimension | IN | MM | Style | Construction | Material | Spring Material | |
| OD (D) | 3.7500 | 95.2502 | TA | Double Lip | NBR 70 | Stainless Steel | |
| ID (d) | 2.6250 | 66.6751 | |||||
| W (B) | 0.3750 | 9.5250 |
| Weight | 0.41 lbs |
|---|---|
| Dimensions | 3.75 × 3.75 × 0.375 in |
| A | ""link"":""post""} |
| Access Restriction | ""link"":""none""} |
| Actuator Type | bgcolor"":""""}" |
| Category | Oil Seals |
| Construction | Double Lip |
| Style | TA |
| Part Number | T9730290, SE262-375-37TA |
| Material | NBR 70 |
| Item Weight | 0.41 lbs, 0.19 kg |
| Outside Diameter (D) | 3.750 in, 95.2502 mm |
| Inside Diameter (d) | 2.625 in, 66.6751 mm |
| Width (B) | 0.375 in, 9.5250 mm |
| Spring Material | Stainless Steel |
| Min Temperature | -40° F, -40° C |
| Max Temperature | 225° F, 107° C |
