Enduro L623110 - T7790639 - Tapered Roller Bearing - Direct Timken Replacement - AAxis Distributors

Enduro L623110

$60.00

DIRECT TIMKEN REPLACEMENT
TAPERED ROLLER BEARING
L623110 / L623149
AAXIS#: T7790639

Dimensions	INCH	MM
OD (D)	6.000	152.4
ID (d)	4.5000	114.3
Width (T)	0.8440	21.433

8 in stock

SKU: T7790639 Categories: Bearings, Roller Bearings, Tapered Tags: 2150185, 7794000639, 8408131, B 0.8438 in, B 21.433 mm, Bearings, C 0.6563 in, C 16.67 mm, d 114.3 mm, D 152.4 mm, d 4.5000 in, D 6.0000 in, Direct Timken Replacement, Eaton, Enduro, FL623110, KOYO, L623110, L623149, Napa, Roller Bearing, SEALED POWER, Single Cup, Single Row, SKF, T 0.8440 in, T 21.433 mm, T7060430, T7790639, Tapered

Product Information

Enduro L623110

L623110 / L623149

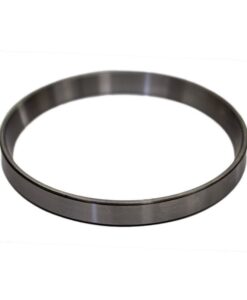

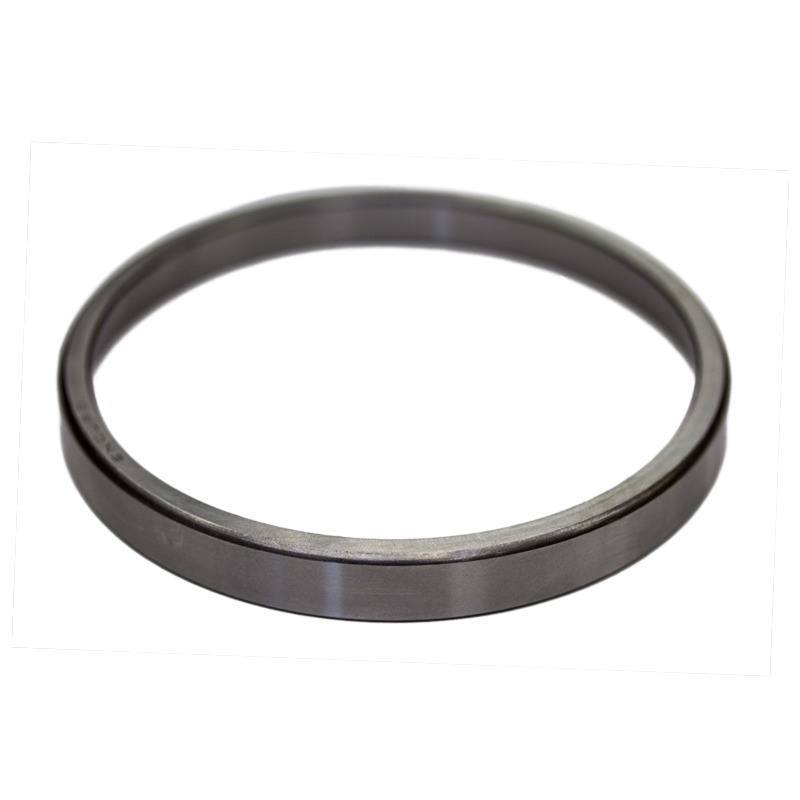

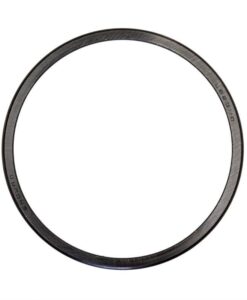

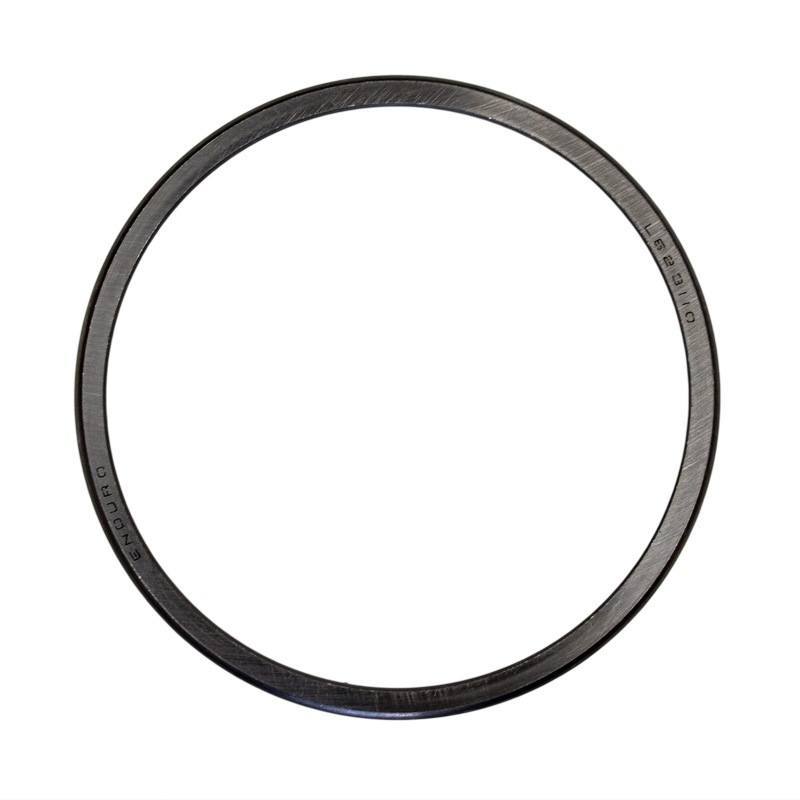

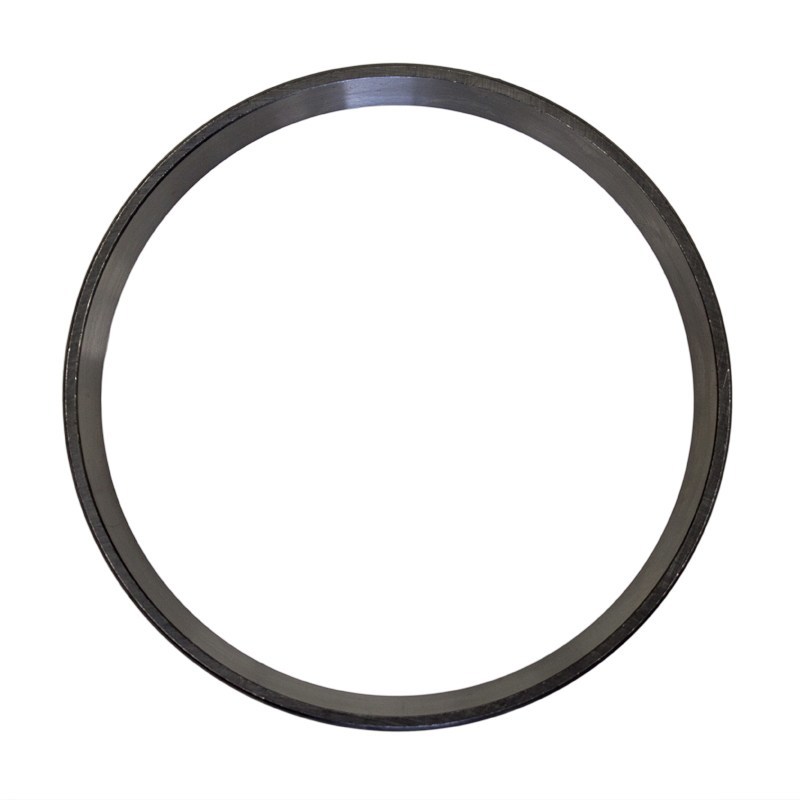

The Enduro L623110 single outer race cup joins with the Enduro L623149 single inner race cone (sold separately) to form a single tapered roller bearing, suitable for applications that support both radial and axial loads. Made of high-alloy steel, the single cone is durable, heat tolerant, and resistant to contortion under heavy loads. The rollers are prevented from coming into contact with each other during use because of the stamped steel cage. This reduces friction, vibration, and noise. Because the tapered bearing unit is separable, the single cone assembly allows for lubrication and accurate adjustments.

Dimensions	INCH	MM	Load Rating	LBF	N
OD (D)	6.000	152.4	Cor	20120	89500
ID (d)	4.5000	114.3	Cr	40016	178000
Width (T)	0.8440	21.433
B	0.8438	21.433	Limiting Speeds	RPM
C	0.6563	16.67	Grease	2000
R	0.06	1.52	Oil	2800
r	0.06	1.52

Click Here to see the Reference Diagram.

Dimension	Description	Load Rating
OD (D)	Outside Diameter	Cr	Dynamic Load Rating
ID (d)	Inside Diameter	Cor	Static Load Rating
Width (T)	Bearing Width
B	Cone Width
C	Cup Width
R	Cone Radius
r	Cup Radius

Specifications

Weight	0.75625 lbs
Dimensions	6 × 6 × 0.625 in
A	""link"":""post""}
Access Restriction	""link"":""none""}
Actuator Type	bgcolor"":""""}"
Category	Bearings
Type	Tapered Roller Bearing
Item Shape	Single Row, Single Cup
Brand Name	Enduro
Part Number	T7790639, L623110
Material	Steel
Outside Diameter (D)	6.0000 in, 152.4003 mm
Inside Diameter	4.5000 in, 114.3002 mm
Width (C)	0.6563 in, 16.6701 mm
Load Capacity, Dynamic (Cr)	40,016 lbf, 178,000 N
Limiting Speed, Grease	2,000 rpm
Limiting Speed, Oil	2,800 rpm
Load Capacity, Static (Cor)	20,120 lbf, 89,498 N
