Enduro L217810 – L217849 Set

$85.00

DIRECT TIMKEN REPLACEMENT
TAPERED ROLLER BEARING
L217810 / L217849
AAXIS#: T7060109

Dimensions	INCH	MM
OD (D)	4.8750	123.8252
ID (d)	3.5000	88.9002
Width (T)	0.8130	20.6502

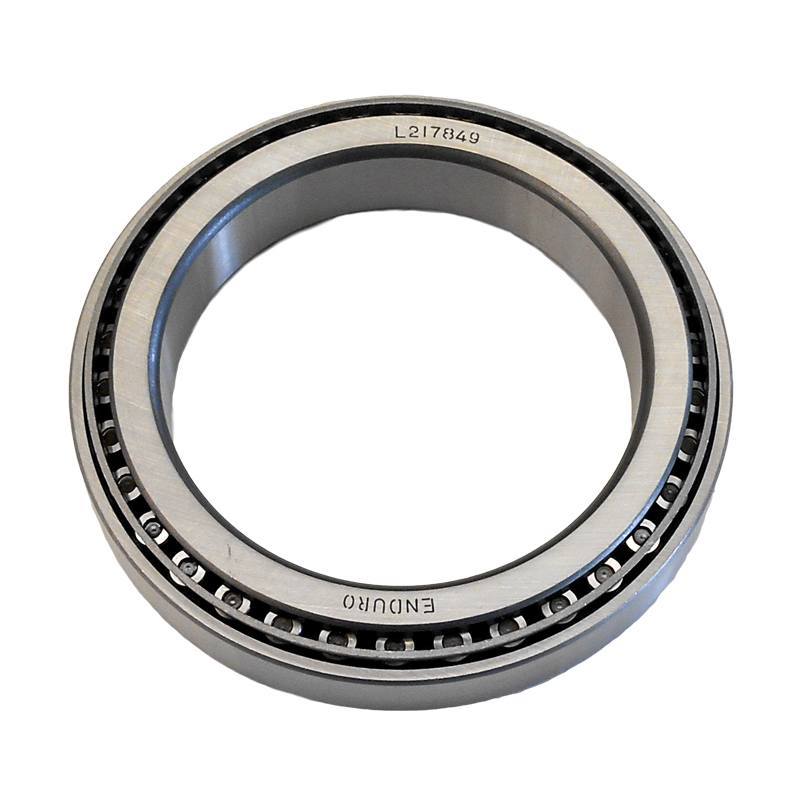

The Enduro L217810 – L217849 is the complete set containing both the cone and cup to form a single tapered roller bearing, suitable for applications that support both radial and axial loads.

5 in stock

SKU: T7060109 Categories: Bearings, Roller Bearings, Tapered Tags: B 0.8125 in, B 20.6375 mm, Bearings, BOWER, C 0.6563 in, C 16.6701 mm, CATERPILLAR, Cor 104088 N, Cor 23400 lbf, Cr 16900 lbf, Cr 75175 N, D 123.8252 mm, d 3.5000 in, d 4.8750 in, d 88.9002 mm, Daimler-Benz, Direct Timken Replacement, Eaton, Enduro, FAG, GOODMAN, IHC, JEFFREY, JOY MFG, L217849, NSN, NTN, r 0.06 in, R 1.52 mm, SKF, T 0.8130 in, T 20.6502 mm, Tapered Roller Bearing, Timken, WABCO

Product Information

Enduro L217810 – L217849 Set

L217810 / L217849

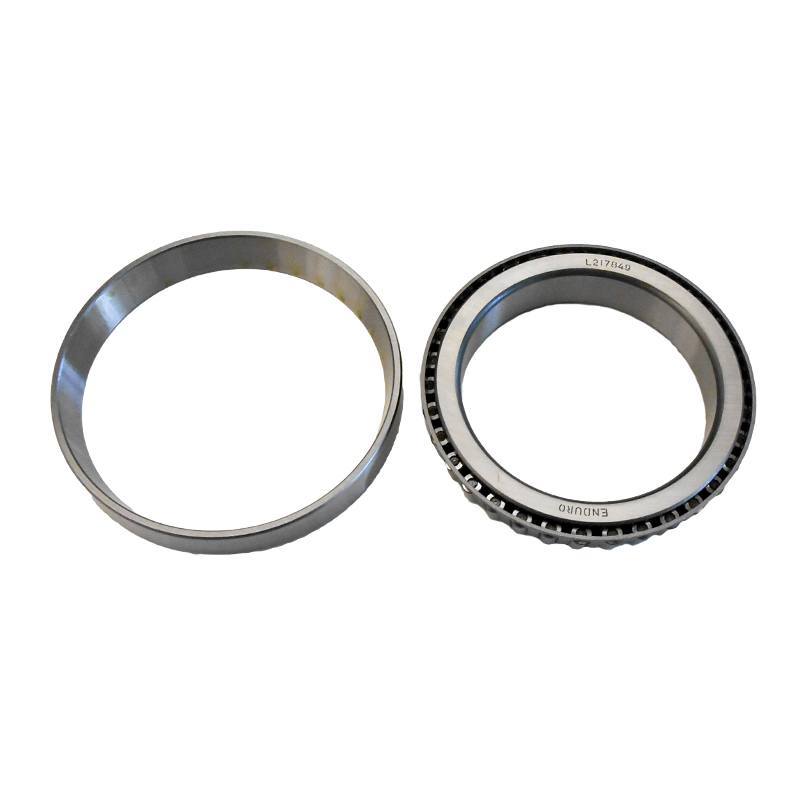

The Enduro L217810 – L217849 is the complete set containing both the cone and cup to form a single tapered roller bearing, suitable for applications that support both radial and axial loads. Made of high-alloy steel, the single cone is durable, heat tolerant, and resistant to contortion under heavy loads. The rollers are prevented from coming into contact with each other during use because of the stamped steel cage. This reduces friction, vibration, and noise. Because the tapered bearing unit is separable, the single cone assembly allows for lubrication and accurate adjustments.

Dimensions	INCH	MM	Load Rating	LBF	N
OD (D)	4.8750	123.8252	Cor	23	400	104	088
ID (d)	3.5000	88.9002	Cr	16	900	75	175
Width (T)	0.8130	20.6502
B	0.8125	20.6375	Limiting Speeds	RPM
C	0.6563	16.6701	Grease	2	700
R	0.06	1.52	Oil	3	500
r	0.06	1.52

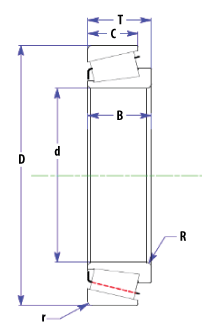

Click Here to see the Reference Diagram.

Dimension	Description	Load Rating
OD (D)	Outside Diameter	Cr	Dynamic Load Rating
ID (d)	Inside Diameter	Cor	Static Load Rating
Width (T)	Bearing Width
B	Cone Width
C	Cup Width
R	Cone Radius
r	Cup Radius

Specifications

Weight	6.2 lbs
Dimensions	6 × 6 × 4 in
Access Restriction	""link"":""none""}
A	""link"":""post""}
Actuator Type	bgcolor"":""""}"
Category	Bearings
Type	Tapered Roller Bearing
Item Shape	Single Row, Single Cup
Brand Name	Enduro
Part Number	TL217810, L217810
Load Capacity, Static (Cor)	23,400 lbf, 104,088 N
Material	Steel
Outside Diameter (D)	4.8750 in, 123.8252 mm
Inside Diameter (d)	3.5000 in, 88.9002 mm
Width (C)	0.6563 in, 16.6701 mm
Load Capacity, Dynamic (Cr)	16,900 lbf, 75,175 N
Limiting Speed, Grease	2,700 rpm
Limiting Speed, Oil	3,500 rpm

L217810 Interchange

BRAND	PART
IHC	922739C1
FAG	KL217810
NTN	4TL217810
NTN	ETL217810
TIMKEN	L217810
WABCO	2150138
SKF	KL217810
NSN	3110-00-227-3344
BOWER	L217810
JOY MFG	960154-1
JOY MFG	96XL217810
JEFFREY	184237
JEFFREY	906256
DAIMLER-BENZ	001-981-16-80
GOODMAN	2150138
EATON	SD348X52
CATERPILLAR	6K9187

L217849 Interchange

BRAND	PART
IHC	922740C91
FAG	KL217849
KOYO	L217849
NTN	4TL217849
NTN	ETL217849
TIMKEN	L217849
WABCO	2140172
SKF	KL217849
NSN	3110002273345
BOWER	L217849
JOY MFG	9501541
JOY MFG	95XL217849
JEFFREY	172655
JEFFREY	172657
JEFFREY	173858
JEFFREY	184236
JEFFREY	906255
DAIMLER-BENZ	0019814081
GOODMAN	2140172
EATON	723873AOA
EATON	SD347X101
CATERPILLAR	6K9188
