SE-087-149-31TBP-V - T7790394 - Double Lip Oil Seal - AAxis Distributors

Enduro SE-087-149-31TBP-V

Name: Enduro SE-087-149-31TBP-V
SKU: T7790570
Price: 11.00 USD
Availability: InStock

$11.00

OIL SEAL
CONSTRUCTION: DOUBLE-LIP
STYLE: TBP-V
MATERIAL: VITON
SPRING MATERIAL: STAINLESS STEEL
AAXIS#: T7790570

[vc_table vc_table_theme=”classic” el_class=”cart-wrapper”][align-center]Dimension,[align-center]IN,[align-center]MM|[align-center]OD (D),[align-center]1.4900,[align-center]37.8461|[align-center]ID (d),[align-center]0.8700,[align-center]22.0980|[align-center]W (B),[align-center]0.3100,[align-center]7.8740[/vc_table]

6 in stock

SKU: T7790570 Categories: Double Lip, Oil Seals Tags: 7794000570, All Seals / ABI, B 0.31 in, B 7.874 mm, d 0.87 in, D 1.49 in, d 22.098 mm, D 37.8461 mm, Double Lip, Enduro, SE-087-149-31TBP-V, Spring, T7790570, TBP-V, Viton

Product Information
Specs

Product Information

Enduro SE-087-149-31TBP-V

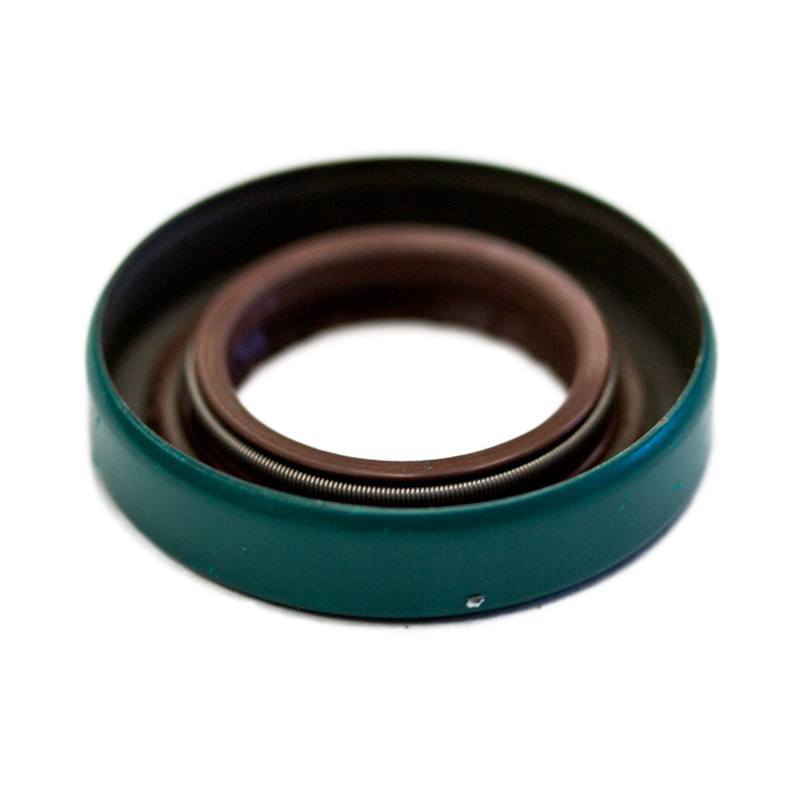

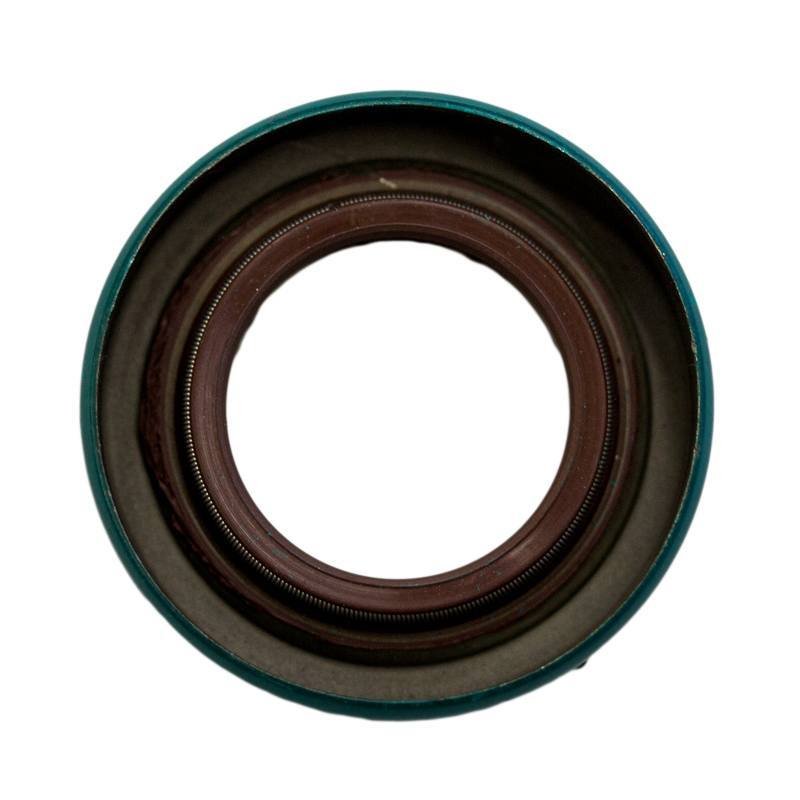

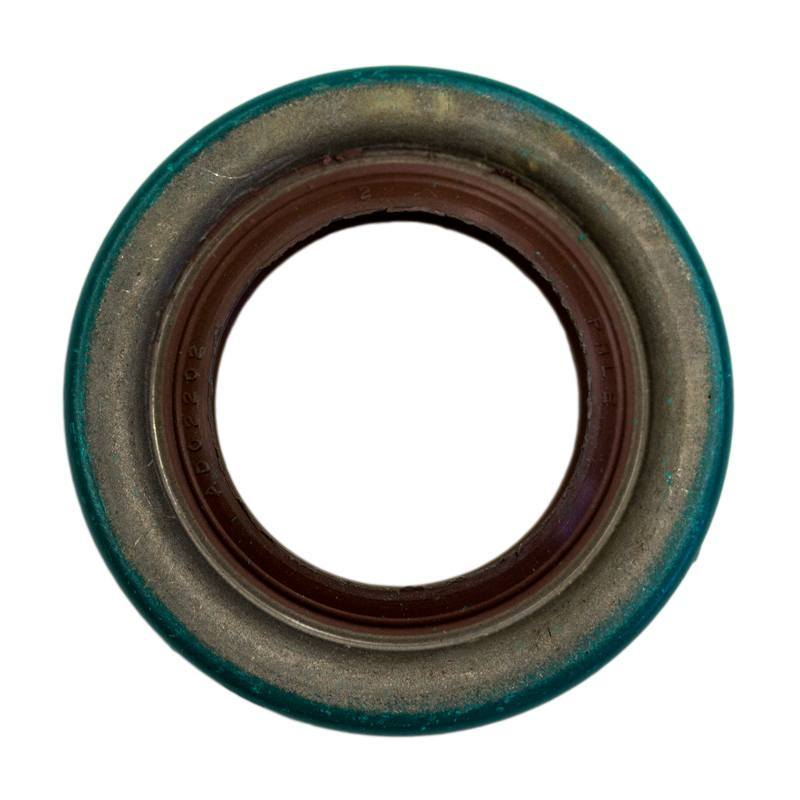

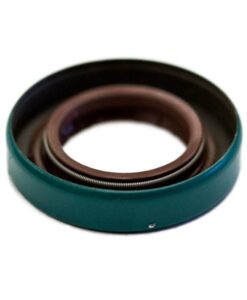

The Enduro SE-087-149-31TBP-V is a double lip oil seal with a TBP-V lip design containing a stainless steel spring. The Enduro SE-087-149-31TBP-V is made of DuPont™ Viton® which is a fluoroelastomer proven to provide resistance to chemicals and extreme temperatures.

Oil seals are designed to keep lubrication fluids in while preventing debris and water from entering the rotating shaft.

[vc_table vc_table_theme=”classic” el_class=”cart-wrapper”][align-center]Dimension,[align-center]IN,[align-center]MM,,[align-center]Style,[align-center]Construction,[align-center]Material,[align-center]Spring Material|[align-center]OD (D),[align-center]1.4900,[align-center]37.8461,,[align-center]TBP-V,[align-center]Double Lip,[align-center]Viton,[align-center]Stainless Steel|[align-center]ID (d),[align-center]0.8700,[align-center]22.0980,,[align-center],[align-center],[align-center],[align-center]|[align-center]W (B),[align-center]0.3100,[align-center]7.8740,,[align-center],[align-center],[align-center],[align-center][/vc_table]

Click Here to see Reference Diagram.

Oil Seals Diagram - AAxis Distributors — Oil Seals Diagram

Specifications

Weight	0.08 lbs
Dimensions	1.5 × 1.5 × 0.25 in
Access Restriction	""link"":""none""}
A	""link"":""post""}
Actuator Type	bgcolor"":""""}"
Category	Oil Seals
Construction	Double Lip
Style	TBP-V
Part Number	T7790570, SE-087-149-31TBP-V
Material	Viton
Outside Diameter (D)	1.49 in, 37.8461 mm
Inside Diameter (d)	0.87 in, 22.0980 mm
Width (B)	0.31 in, 7.8740 mm
Spring Material	Stainless Steel
Min Temperature	-40°F, -40°C
Max Temperature	400° F, 205° C

Enduro SE-087-149-31TBP-V

Product Information

Enduro SE-087-149-31TBP-V

Click Here to see Reference Diagram.

Specifications
