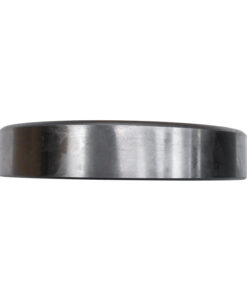

Enduro 48220 - T48220 - Tapered Roller Bearing - Direct Timken Replacement - Top Side - AAxis Distributors

Enduro 48220

$48.00

DIRECT TIMKEN REPLACEMENT
TAPERED ROLLER BEARING
48286 / 48220
AAXIS#: T9040540

Dimensions	INCH	MM
OD (D)	7.1875	182.5625
ID (d)	4.8750	123.825
Width (T)	1.5630	39.7002

The Enduro 48220 outer race cup joins with the Enduro 48286 inner race cone (sold separately) to form a single tapered roller bearing, suitable for applications that support both radial and axial loads.

4 in stock

SKU: T48220 Categories: Bearings, Roller Bearings, Tapered Tags: 742262, 834445M1, 9049100540, 9601761, B 1.5000 in, B 38.1 mm, C 1.3125 in, C 33.3375 mm, CLARK, Cor 111000 lbf, Cor 493752 N, Cr 267782 N, Cr 60200 lbf, d 123.825 mm, D 182.5625 mm, d 4.8750 in, D 7.1875 in, D74804, Direct Timken Replacement, Enduro, GALION, GM, IHC, JD9129, John Deere, JOY MFG, MASSEY FERGUSON, r 0.13 in, R 0.14 in, r 3.30 mm, R 3.56 mm, ROCKWELL, Roller Bearing, Single Cone, Single Row, T 1.5630 in, T 39.7002 mm, T9040540, Tapered, Timken, VOLVO

Product Information

Enduro 48220

48286 / 48220

The Enduro 48220 outer race cup joins with the Enduro 48286 inner race cone (sold separately) to form a single tapered roller bearing, suitable for applications that support both radial and axial loads. Made of high-alloy steel, the single cone is durable, heat tolerant, and resistant to contortion under heavy loads. The rollers are prevented from coming into contact with each other during use because of the stamped steel cage. This reduces friction, vibration, and noise. Because the tapered bearing unit is separable, the single cone assembly allows for lubrication and accurate adjustments.

Dimensions	INCH	MM	Load Rating	LBF	N
OD (D)	7.1875	182.5625	Cor	111000	493752
ID (d)	4.8750	123.825	Cr	60200	267782
Width (T)	1.5630	39.7002
B	1.5000	38.1	Limiting Speeds	RPM
C	1.3125	33.3375	Grease	1800
R	0.14	3.56	Oil	2400
r	0.13	3.30

Click Here to see the Reference Diagram.

Dimension	Description	Load Rating
OD (D)	Outside Diameter	Cr	Dynamic Load Rating
ID (d)	Inside Diameter	Cor	Static Load Rating
Width (T)	Bearing Width
B	Cone Width
C	Cup Width
R	Cone Radius
r	Cup Radius

Specifications

Weight	3 lbs
Dimensions	6.75 × 6.75 × 1.75 in
Access Restriction	""link"":""none""}
A	""link"":""post""}
Actuator Type	bgcolor"":""""}"
Category	Bearings
Type	Tapered Roller Bearing
Item Shape	Single Row, Single Cone
Brand Name	Enduro
Part Number	T48220, 48220
Material	Steel
Outside Diameter (D)	7.1875 in, 182.5625 mm
Inside Diameter (d)	4.8750 in, 123.825 mm
Width (B)	1.5000 in, 38.1 mm
Load Capacity, Dynamic (Cr)	60,200 lbf, 267,782 N
Load Capacity, Static (Cor)	111,000 lbf, 493,752 N
