Enduro 52400

$50.00

DIRECT TIMKEN REPLACEMENT
TAPERED ROLLER BEARING
52400 / 52618
AAXIS#: T7060168

Dimensions	INCH	MM
OD (D)	6.1870	157.1498
ID (d)	4.0000	101.6
Width (T)	1.4380	36.5252

1 in stock

SKU: T7060168 Categories: Bearings, Roller Bearings, Tapered Tags: 52400, 52618, 7069000168, B 1.4219 in, B 36.1162 mm, C 1.0313 in, C 26.1950 mm, Cor 342512 N, Cor 77000 lbf, Cr 223300 N, Cr 50200 lbf, d 101.6 mm, D 157.1498 mm, d 4.0000 in, D 6.1870 in, Direct Timken Replacement, Enduro, r 0.13 in, R 0.14 in, r 3.30 mm, R 3.56 mm, Roller Bearing, Single Cone, Single Row, T 1.4380 in, T 36.5252 mm, T7060168, Tapered

Product Information

Enduro 52400

52400 / 52618

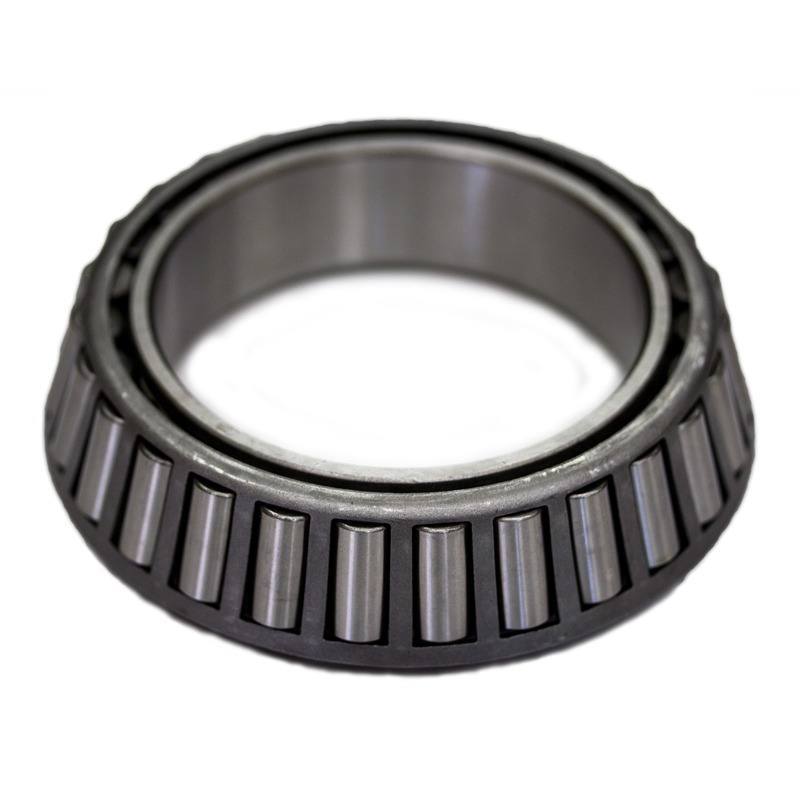

The Enduro 52400 inner race cone joins with the Enduro 52618 outer race cup (sold separately) to form a single tapered roller bearing, suitable for applications that support both radial and axial loads. Made of high-alloy steel, the single cone is durable, heat tolerant, and resistant to contortion under heavy loads. The rollers are prevented from coming into contact with each other during use because of the stamped steel cage. This reduces friction, vibration, and noise. Because the tapered bearing unit is separable, the single cone assembly allows for lubrication and accurate adjustments.

[vc_table vc_table_theme=”classic” el_class=”cart-wrapper”][align-center]Dimensions,[align-center]INCH,[align-center]MM,,[align-center]Load Rating,[align-center]LBF,[align-center]N|[align-center]OD (D),[align-center]6.1870,[align-center]157.1498,,[align-center]Cor,[align-center]77000,[align-center]342512|[align-center]ID (d),[align-center]4.0000,[align-center]101.6,,[align-center]Cr,[align-center]50200,[align-center]223300|[align-center]Width (T),[align-center]1.4380,[align-center]36.5252,,,,|[align-center]B,[align-center]1.4219,[align-center]36.1162,,[b;align-center]Limiting Speeds,[b;align-center]RPM,|[align-center]C,[align-center]1.0313,[align-center]26.1950,,[align-center]Grease,[align-center]2200,|[align-center]R,[align-center]0.14,[align-center]3.56,,[align-center]Oil,[align-center]2900,|[align-center]r,[align-center]0.13,[align-center]3.30,,,,[/vc_table]

Click Here to see the Reference Diagram.

[vc_table vc_table_theme=”classic” el_class=”cart-wrapper”][align-center]Dimension,[align-center]Description,[align-center],[align-center]Load Rating,[align-center]|[align-center]OD (D),[align-center]Outside Diameter,[align-center],[align-center]Cr,[align-center]Dynamic Load Rating|[align-center]ID (d),[align-center]Inside Diameter,[align-center],[align-center]Cor,[align-center]Static Load Rating|[align-center]Width (T),[align-center]Bearing Width,[align-center],[align-center],[align-center]|[align-center]B,[align-center]Cone Width,[align-center],[align-center],[align-center]|[align-center]C,[align-center]Cup Width,[align-center],[align-center],[align-center]|[align-center]R,[align-center]Cone Radius,[align-center],[align-center],[align-center]|[align-center]r,[align-center]Cup Radius,[align-center],[align-center],[align-center][/vc_table]

Specifications

Weight	3.71 lbs
Dimensions	6 × 6 × 1.25 in
A	""link"":""post""}
Access Restriction	""link"":""none""}
Actuator Type	bgcolor"":""""}"
Category	Bearings
Type	Tapered Roller Bearing
Item Shape	Single Row, Single Cone
Brand Name	Enduro
Part Number	T7060168, 52400
Material	Steel
Outside Diameter (D)	6.1870 in, 157.1501 mm
Inside Diameter (d)	4.0000 in, 101.6002 mm
Width (B)	1.4219 in, 36.1163 mm
Load Capacity, Dynamic	50,200 lbf
Load Capacity, Static	77,000 lbf
Limiting Speed, Oil	2900 rpm
Limiting Speed, Grease	2200 rpm

[vc_table vc_table_theme=”classic”][align-center]BRAND,[align-center]PART|[align-center]INGERSOLL-RAND,[align-center]35676956|[align-center]WHITE MOTOR,[align-center]92987|[align-center]CATERPILLAR,[align-center]7L6551|[align-center]NSN,[align-center]A346115|[align-center]ALLIS-CHALMERS,[align-center]73014571|[align-center]JOHN DEERE,[align-center]P32663|[align-center]PERFECT CIRCLE,[align-center]52400|[align-center]GM,[align-center]9413079|[align-center]Timken,[align-center]52400[/vc_table]

Enduro 52400

Product Information

Enduro 52400

52400 / 52618

Click Here to see the Reference Diagram.

Specifications
