Enduro JLM506849 - T9730292 - Tapered Roller Bearing - Direct Timken Replacement - T9730292 - AAxis Distributors

BEARINGS

Enduro WJ141816 - TWLM0012 - Needle Roller Bearing - Direct Timken Replacement - AAxis Distributors

Direct Timken Replacements

BEARINGS

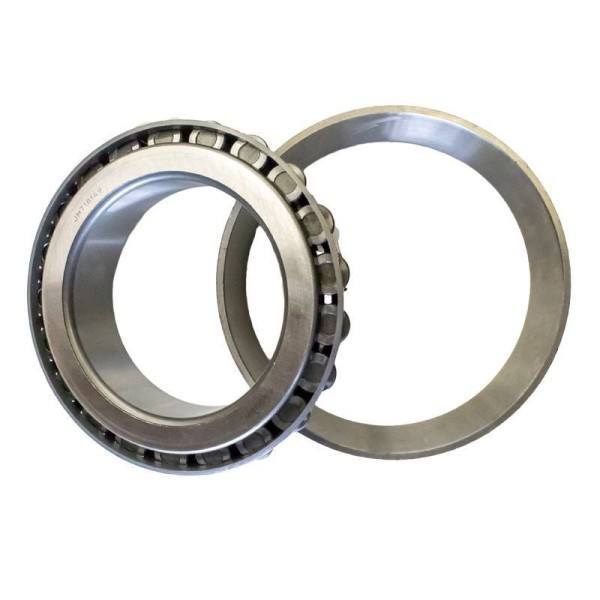

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Enduro JM718149 - JM718110 Set - T7060181 - Tapered Roller Bearing - AAxis Distributors

Tapered Roller Bearings

Ball Bearings

Enduro LS-13F

$39.50


Want to learn more about Ball Bearings?

Ball Bearing – Wikipedia

This article uses material from the Wikipedia article “Ball Bearing”, which is released under the Creative Commons Attribution-Share-Alike License 3.0.

ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the bearing races.

The purpose of a ball bearing is to reduce rotational friction and support radial and axial loads. It achieves this by using at least two races to contain the balls and transmit the loads through the balls. In most applications, one race is stationary and the other is attached to the rotating assembly (e.g., a hub or shaft). As one of the bearing races rotates it causes the balls to rotate as well. Because the balls are rolling they have a much lower coefficient of friction than if two flat surfaces were sliding against each other.

Ball bearings tend to have lower load capacity for their size than other kinds of rolling-element bearings due to the smaller contact area between the balls and races. However, they can tolerate some misalignment of the inner and outer races.

Courtesy of Wikipedia.org - http://en.wikipedia.org/wiki/Ball_bearing
Courtesy of Wikipedia.org – http://en.wikipedia.org/wiki/Ball_bearing

Common Types

An angular contact ball bearing uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support “combined loads” (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load. In high speed applications, such as turbines, jet engines, and dentistry equipment, the centrifugal forces generated by the balls changes the contact angle at the inner and outer race. Ceramics such as silicon nitride are now regularly used in such applications due to their low density (40% of steel). These materials significantly reduce centrifugal force and function well in high temperature environments. They also tend to wear in a similar way to bearing steel—rather than cracking or shattering like glass or porcelain.

Most bicycles use angular-contact bearings in the headsets because the forces on these bearings are in both the radial and axial direction.

An axial ball bearing uses side-by-side races. An axial load is transmitted directly through the bearing, while a radial load is poorly supported and tends to separate the races,so that a larger radial load is likely to damage the bearing.
In a deep-groove radial bearing, the race dimensions are close to the dimensions of the balls that run in it. Deep-groove bearings can support higher loads.
