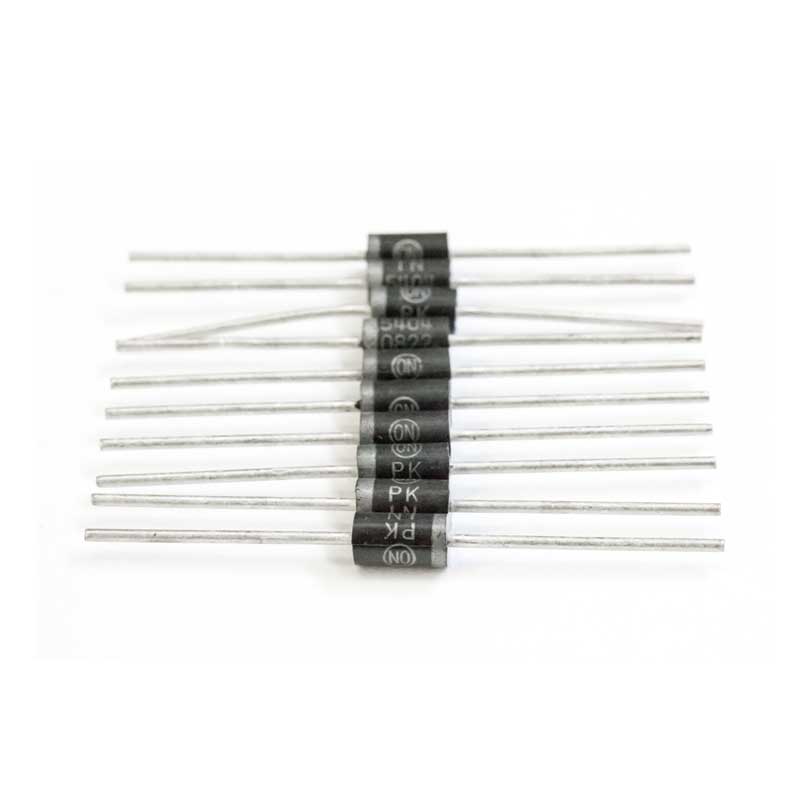

1N5404 3-Pack

Name: 1N5404 3-Pack
SKU: T7350113
Price: 5.50 USD
Availability: InStock

$5.50

ELECTRICAL
DIODE
AAXIS PART#: T7350113

FEATURES

15 in stock

Product Information

Characteristic	Symbol	Value
Peak Repetitive Reverse Voltage<br /> Working Peak Reverse Voltage<br /> DC Blocking Voltage	VRRM<br /> VRWM<br /> VR	400 V
RMS Reverse Voltage	VR(RMS)	280 V

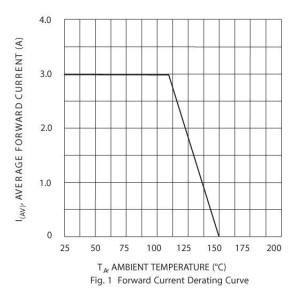

Average Rectified Output Current @ TA=105°C	IO	3.0 A

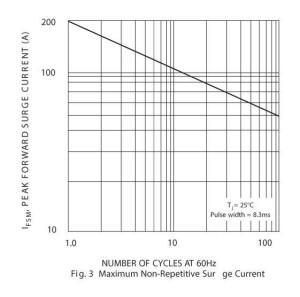

Non-Repetitive Peak Forward Surge Current<br /> 8.3ms Single half sine-wave superimposed on rated load	IFSM	200 A

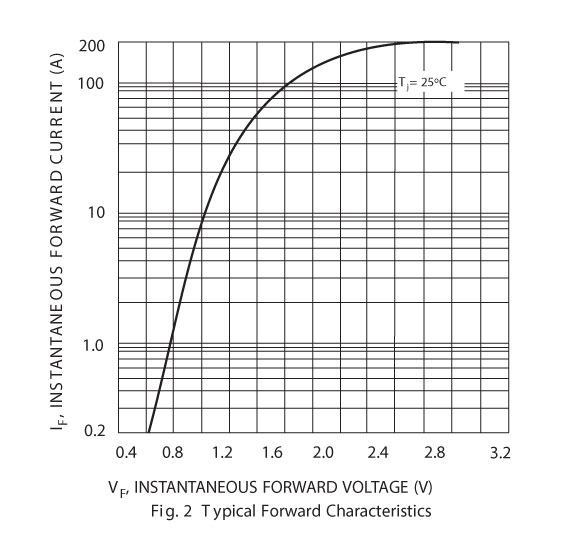

Forward Voltage @ IF = 3.0A	VFM	1.0 V
Peak Reverse Current @ TA = 25°C<br /> at Rated DC Blocking Voltage @ TA = 150°C	IRM	10 µA<br /> 100 µA

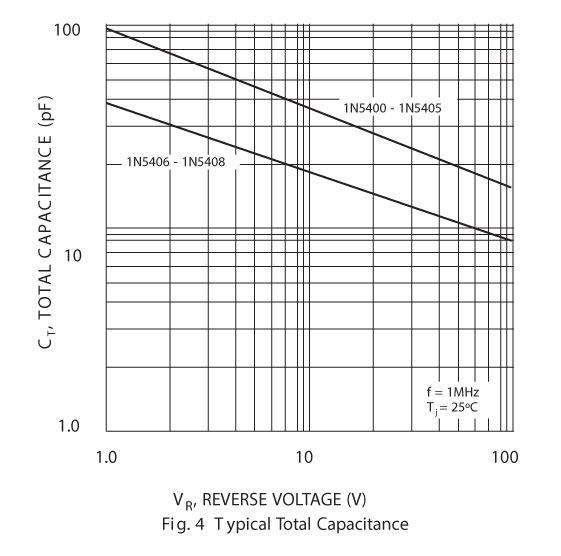

Typical Total Capacitance	CT	50 pF
Typical Thermal Resistance Junction to Ambient	RØJA	15°C/W
Operating and Storage Temperature Range	Tj	TSTG	-65°C to +150°C

Weight	0.2 lbs
Dimensions	4 × 4 × 4 in
Typical Total Capacitance	50
Category	Electronics
A	""link"":""post""}
Access Restriction	""link"":""none""}
Actuator Type	bgcolor"":""""}"
Case	D0-201AD
Polarity	Cathode Band
B	Min. 7.20 mm, Max. 9.50 mm
Type	Diode
Part Number	T7350113, 1N5404
C	Min. 1.20 mm, Max. 1.30
D	Min. 4.80 mm, Max. 5.30 mm
Case Material	Molded Plastic. UL Flammability
Moisture Sensitivity	Level 1 per J-STD-020C
Terminals	Finish – Tin. Plated Leads Solderable per MIL-STD-202, Method 208
Marking	Type Number
Peak Repetitive Reverse Voltage	400
RMS Reverse Voltage	280
Average Rectified Output Current	3.0
Forward Voltage	200
Peak Reverse Current at Rated DC Blocking Voltage	1.0
Typical Thermal Resistance Junctionto Ambient	15
Operating and Storage Temperature Range	-62 °C to 150 °C
